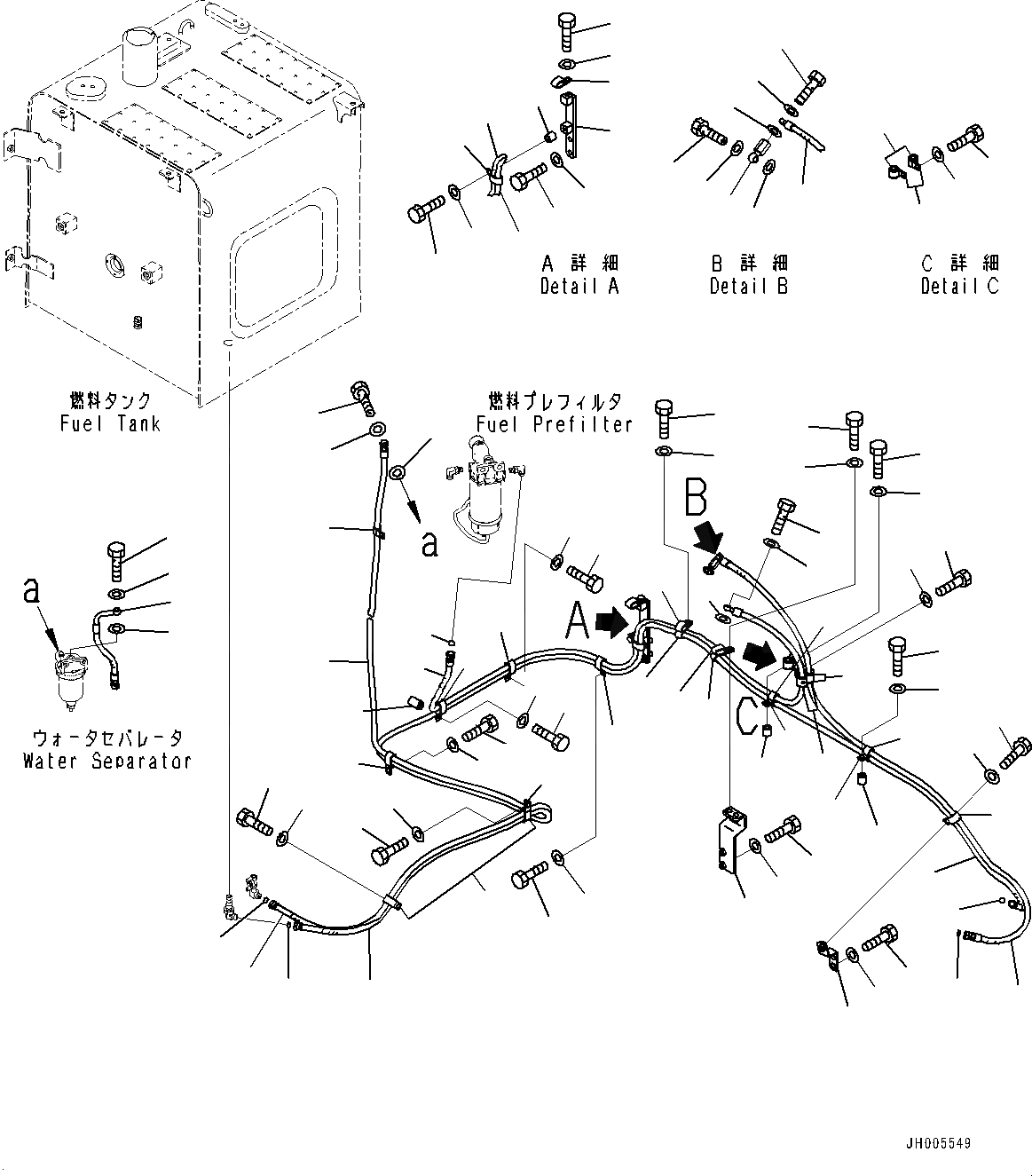

| _ | _ | № | Number | Qty | Name | Options |
|---|---|---|---|---|---|---|
| 1 | 0276200350 | 1 | Hose, Face Seal Type | SN: 1001-UP | ||
| 2 | 2050422121 | 1 | Hose | SN: 1001-UP | ||
| 3 | 2050422151 | 1 | Hose | SN: 1001-UP | ||
| 4 | 2050422170 | 1 | Hose Assembly | SN: 1001-UP | ||
| 5 | 0289611009 | 4 | O-ring | SN: 1007-UP | ||
| 6 | 11Y0431470 | 1 | Joint | SN: 1001-UP | ||
| 7 | 0720630812 | 3 | Bolt, Joint | SN: 1001-UP | ||
| 8 | 0700501212 | 6 | Seal, Washer | SN: 1001-UP | ||
| 9 | 2050422161 | 1 | Hose | SN: 1001-UP | ||
| 10 | 0720631014 | 2 | Bolt, Joint | SN: 1001-UP | ||
| 11 | 0700501412 | 4 | Seal, Washer | SN: 1001-UP | ||
| 12 | 0443551812 | 8 | Clip | SN: 1232-UP | ||
| 12 | 0443551812 | 7 | Clip | SN: 1001-1231 | ||
| 13 | 0101081225 | 7 | Bolt | SN: 1232-UP | ||
| 13 | 0101081225 | 6 | Bolt | SN: 1001-1231 | ||
| 14 | 0164331232 | 7 | Washer | SN: 1232-UP | ||
| 14 | 0164331232 | 6 | Washer | SN: 1001-1231 | ||
| 15 | 1953311220 | 1 | Spacer | SN: 1001-UP | ||
| 16 | 0101081250 | 1 | Bolt | SN: 1001-UP | ||
| 17 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 18 | 0443451812 | 1 | Clip | SN: 1001-UP | ||
| 19 | 0101081225 | 1 | Bolt | SN: 1001-UP | ||
| 20 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 21 | 2050422210 | 1 | Bracket | SN: 1001-UP | ||
| 22 | 0101081235 | 2 | Bolt | SN: 1001-UP | ||
| 23 | 0164331232 | 2 | Washer | SN: 1001-UP | ||
| 24 | 0443551612 | 1 | Clip | SN: 1001-UP | ||
| 25 | 0101081225 | 1 | Bolt | SN: 1001-UP | ||
| 26 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 27 | 0443551612 | 1 | Clip | SN: 1001-UP | ||
| 28 | 1953311220 | 1 | Spacer | SN: 1001-UP | ||
| 29 | 0101081250 | 1 | Bolt | SN: 1001-UP | ||
| 30 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 31 | 0443551612 | 1 | Clip | SN: 1001-UP | ||
| 32 | 0443551812 | 1 | Clip | SN: 1001-UP | ||
| 33 | 0101081235 | 1 | Bolt | SN: 1001-UP | ||
| 34 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 35 | 2050422220 | 1 | Bracket | SN: 1001-UP | ||
| 36 | 0101081235 | 2 | Bolt | SN: 1001-UP | ||
| 37 | 0164331232 | 2 | Washer | SN: 1001-UP | ||
| 38 | 0443551612 | 1 | Clip | SN: 1001-UP | ||
| 39 | 0443551812 | 1 | Clip | SN: 1001-UP | ||
| 40 | 0101081235 | 1 | Bolt | SN: 1001-UP | ||
| 41 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 42 | 0443451812 | 2 | Clip | SN: 1001-UP | ||
| 43 | 1953311220 | 1 | Spacer | SN: 1001-UP | ||
| 44 | 0101081250 | 1 | Bolt | SN: 1001-UP | ||
| 45 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 46 | 0443452512 | 2 | Clip | SN: 1001-UP | ||
| 47 | 0709540318 | 2 | Cushion | SN: 1001-UP | ||
| 48 | 0101081225 | 1 | Bolt | SN: 1001-UP | ||
| 49 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 50 | 0443452312 | 2 | Clip | SN: 1001-UP | ||
| 51 | 0709540314 | 2 | Cushion | SN: 1001-UP | ||
| 52 | 0101081225 | 1 | Bolt | SN: 1001-UP | ||
| 53 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 54 | 0443451812 | 2 | Clip | SN: 1001-UP | ||
| 55 | 1953311220 | 1 | Spacer | SN: 1001-UP | ||
| 56 | 0101081250 | 1 | Bolt | SN: 1001-UP | ||
| 57 | 0164331232 | 1 | Washer | SN: 1001-UP | ||
| 58 | 2050422270 | 1 | Bracket | SN: 1001-UP | ||
| 59 | 0101081235 | 2 | Bolt | SN: 1001-UP | ||
| 60 | 0164331232 | 2 | Washer | SN: 1001-UP | ||
| 61 | 0443551812 | 1 | Clip | SN: 1001-UP | ||
| 62 | 0101081225 | 1 | Bolt | SN: 1001-UP | ||
| 63 | 0164331232 | 1 | Washer | SN: 1001-UP |
