50. HYDRAULIC GEAR PUMP (SAR80¤18) (1/2) [Y1610-11A0]

hm300tnr / Y1610-11A0

HM300TNR YDRAULIC GEAR PUMP (SAR80¤18) (1/2)

№	Number	Qty	Name	Options
	705-52-31180	1	PUMP ASS'Y,(SAR80+18)	SN: 1001-
			THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-11A0 AND Y1610-12A0.
	705-22-38150	1	PUMP ASS'Y,(SAR80)	SN: 1001-
1	~705-17-03021	1	BRACKET ASS'Y	SN: 1001-
	~705-17-03352	2	BUSHING,PLANE	SN: 1001-
2	~705-17-38050	1	CASE,GEAR	SN: 1001-
3	~705-17-03220	1	CARRIER	SN: 1001-
	~705-17-03352	2	BUSHING,PLANE	SN: 1001-
4	~705-19-38430	1	GEAR,DRIVE	SN: 1001-
5	~705-17-38511	1	GEAR,DRIVEN	SN: 1001-
6	705-17-03610	2	PLATE,SIDE	SN: 1001-
7	705-17-03473	2	SEAL	SN: 1001-
8	705-17-03443	2	RING,BACK-UP	SN: 1001-
9	705-17-03381	2	O-RING	SN: 1001-
10	04020-01228	4	PIN,DOWEL	SN: 1001-
11	01253-61625	4	BOLT	SN: 1001-
12	01643-51645	4	WASHER	SN: 1001-
13	705-17-03870	1	PLATE	SN: 1001-
14	705-17-03811	1	SEAL,OIL	SN: 1001-
15	04065-05220	1	RING,SNAP	SN: 1001-

You can buy parts: .

As an associate, we earn commssions on qualifying purchases through the links below

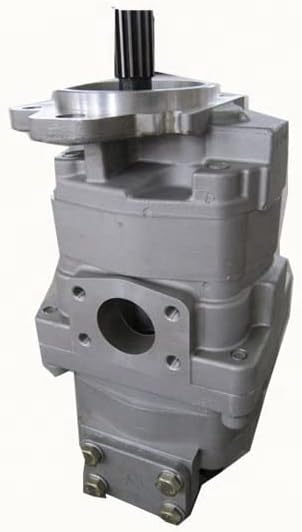

Aftermarket replacement For Komatsu Dump Truck HM300TN-1 HM300-1 HM300-1L Hydraulic Gear Pump 705-52-31180
