_ | _ | № | Number | Qty | Name | Options |
---|---|---|---|---|---|---|
1 | 01010-81050 | 3 | BOLT | SN: A20637-- | ||
2 | 01643-11032 | 6 | WASHER | SN: A20637-- | ||
3 | 21D-09-24190 | 3 | NUT, LOCK | SN: A20637-- | ||
4 | 312609622 | 1 | SUPPORT, CONTROL VALVE | SN: A20637-- | ||
5 | 01016-51040 | 4 | BOLT | SN: A20637-- | ||
6 | 01643-11032 | 2 | WASHER | SN: A20637-- | ||
7 | 21D-09-24190 | 4 | NUT, LOCK | SN: A20637-- | ||
312608086 | 1 | LEVER KNOB | SN: A20637-- | |||
8 | NSS | 1 | KNOB | SN: A20637-- | ||
9 | 885081151 | 5 | MICROSWITCH | SN: A20637-- | ||
10 | 885241029 | 6 | COVER, SWITCH | SN: A20637-- | ||
11 | 312609061 | 1 | LEVER, VALVE CONTROL | SN: A20637-- | ||
12 | 312609060 | 1 | BASE, LEVER | SN: A20637-- | ||
13 | 01016-51030 | 2 | BOLT | SN: A20637-- | ||
14 | 01643-11032 | 2 | WASHER | SN: A20637-- | ||
15 | 01010-80820 | 1 | BOLT | SN: A20637-- | ||
16 | 801852408 | 1 | NUT, LOCK | SN: A20637-- | ||
17 | 312609054 | 1 | BLOCK, LEVER CONTROL | SN: A20637-- | ||
18 | 801510191 | 1 | PIN, LEVER | SN: A20637-- | ||
19 | 312648680 | 1 | LEVER | SN: A20637-- | ||
20 | 01224-40845 | 1 | SCREW | SN: A20637-- | ||
21 | 312612123 | 1 | WIRING HARNESS | SN: A20637-- | ||
22 | 390100020 | 1 | SPRING | SN: A20637-- | ||
23 | 01643-11232 | 1 | WASHER | SN: A20637-- | ||

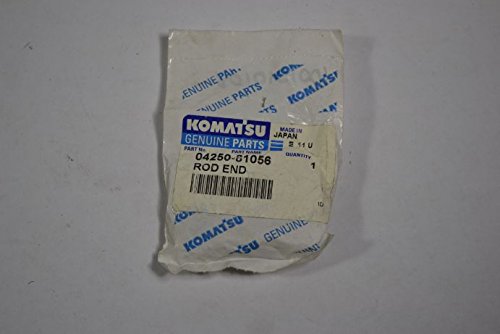

24 | 04250-81056 | 2 | JOINT | SN: A20637-- | ||
25 | 01010-81040 | 4 | BOLT | SN: A20637-- | ||
26 | 312209604 | 4 | SPACER | SN: A20637-- | ||
27 | 01598-01011 | 4 | NUT, LOCK | SN: A20637-- | ||
28 | 312609625 | 2 | ROD, CONTROL | SN: A20637-- | ||
29 | 04050-13030 | 1 | PIN, COTTER | SN: A20637-- | ||
30 | 01582-11008 | 2 | NUT | SN: A20637-- | ||
31 | 01508-41006 | 2 | NUT, LEFT. | SN: A20637-- | ||
32 | 04250-91056 | 2 | JOINT, LEFT | SN: A20637-- | ||
33 | 312648813 | 1 | BOOT | SN: A20637-- | ||
34 | 312648669 | 1 | PLATE, BOOT | SN: A20637-- | ||
35 | 01225-40420 | 3 | BOLT | SN: A20637-- |
